Power Pack Type Nitrogen Charging Unit DLE75
The MAXIMATOR Power Pack Type Nitrogen Charging Unit is specially designed for boosting of nitrogen from gas cylinders of up to 500 bar. The station can be operated with both compressed air and also directly with nitrogen from a gas cylinder, thereby offering maximum mobility.
|
 |
Technical Data
| Type: | Nitrogen Charging Unit DLE 75-1-GG-FEC |
| Order Code: | 3230.2111 |
| Pressure Ratio: | 1 : 75 |
| Working Pressure max.: | 14 – 500 bar |
| Operating Media: | Nitrogen * |
| Flow Capacity max.: | depending on application |
| Air Drive Pressure: | min. 1 bar / max. 7 bar |
| Dimensions W x D x H: | 450 x 550 x 500 mm |
| Dimensions Case W x D x H: | 810 x 670 x 760 mm |
| Weight: | 29 kg |
| Weight incl. Case: | 62 kg |
*other operating media on request
Scope of Supply
 |

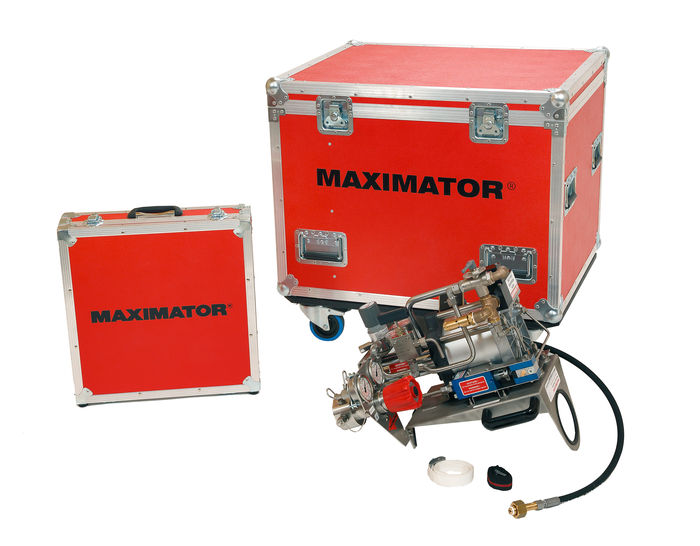

The MAXIMATOR Power Pack Type Nitrogen Charging Unit DLE75 will be delivered in a compact flight case. The scope of supply comprises the Nitrogen Charging Unit and the accessorie case.
|
Accessories
The accessory case for the Maximator Nitrogen Charging Unit contains the Option Measurement Connection and a measurement hose.
|
 |
*not to be used in explosion areas
Connections
 |
|
