The MAXIMATOR Power Pack Type GM 2200 DLE75 is specially designed for ultra high-pressure compression of nitrogen up to 2,100 bar. The station can be operated with both compressed air and also directly with nitrogen from a gas cylinder, thereby offering maximum mobility. Working pressure up to 2,100 bar 3.1 calibrated gauges and transducers Operating medium compressed air/nitrogen Extensive range of accessories Stable flight case for safe transport

Technical Data

*other operating media on request

Scope of Supply

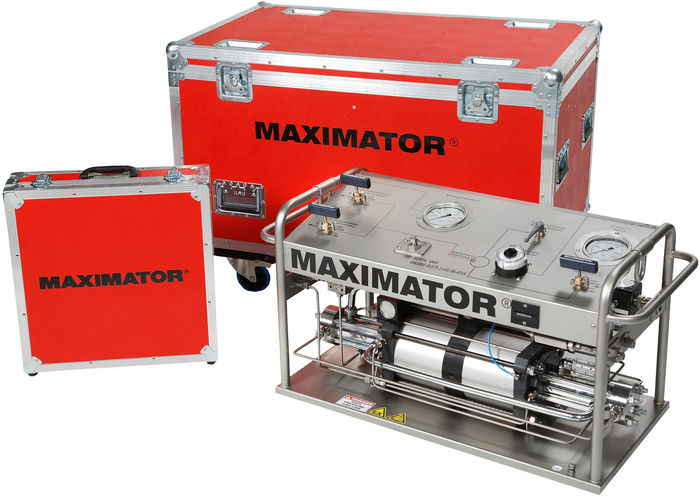

The MAXIMATOR Power Pack Type GM 2200 DLE75 will be delivered in a compact flight case. The scope of supply comprises the Power Pack GM 2200 and the accessorie case. Power Pack Typ GM 2200 DLE75 Accessories Flightcase

Accessories

The accessory case for the Maximator Power Pack GM 2200 contains several adapters. A pressure transducer together with cable connection is also included and allows digital pressure recording for pressure tests or calibration applications. Pressure Transducer 0-2500 bar 0-10V * Cable Connection 3000 mm Adapter: 4H (a) -> 1/2“(f) BSPP 4H (a) -> FNPT 1/2“ 4H (a) -> 1/4“(f) BSPP 4H (a) -> FNPT 1/4“ 6M (a) -> 1/2“(f) BSPP 6M (a) -> FNPT 1/2“ 6M (a) -> 1/4“(f) BSPP 6M (a) -> FNPT 1/4“ Rupture disc RD-32500

*not to be used in explosion areas

Connections

Air Drive Inlet: G 1/2“ Pressure Outlet P: 4H (9/16-18 UNF) Gas Inlet: 6M (9/16-18 UNF) Pressure Release: 4H (9/16-18 UNF) Flushing Connection: G 1/4“
